Your position: Home>Products>Plasma cutting machineContentPlasma cutting machine

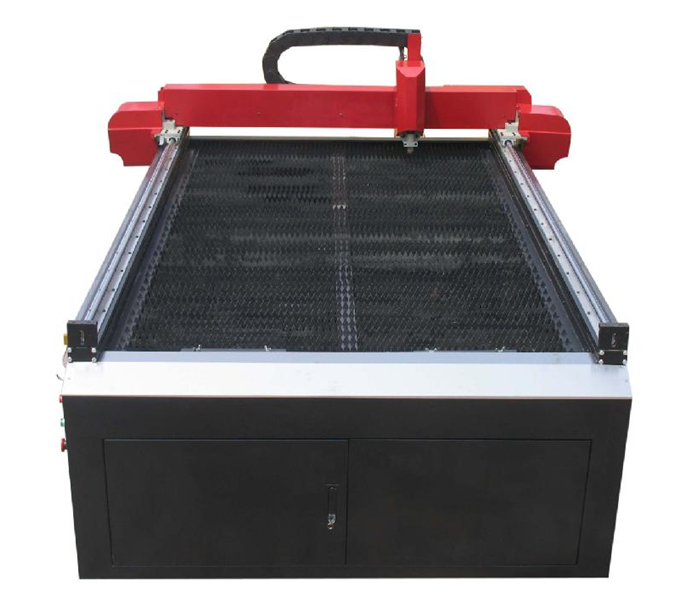

Plasma cutting machine


                     Plasma cutting machine


parameter

1. Plasma power and cutting gun with high quality, made by famous factories in China .



2.Cutting mouth , little and tidy and avoid second trimming.



3. Applied for metal sheet,aluminium sleet,stainless sheet,Titanium sheet and so on



4. High cutting speed, high precision, and low cost.



5. Plasma power: 20A-60A / 380V, the plasma power can be adjusted .



6. Plasma source adopts advanced integrated module control system, it ensures the high precision and stability .



7. With unique handling with breakpoint and interruption of power supply, it can move forward and backward according to the track.



8.Support Wentai, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares



9.The control system uses the U-disk exchange processing document, easy to operate.



10.When machine working with water pump and tank provide circulating water cooling.



11.Difference with other factory plasma cutting machine , this machine use screw-ball as drive mode , which provide high precision for this machine .



Specifications

Model

SM-1326A

SM-1330A

SM-1530A

Working area (X-Y)

1250mmx2450mm

1250mmx2450mm

1500mmx3000mm

Working material

Iron, Steel, Aluminum sheets, Galvanized sheets,

Titanium Plates

Working Thickness

0.5-6mm or Customize

Cutting Speed

0-6000mm/min

Power

8.5kw

Input Voltage

380V 50HZ

Plasma Current

60A or Customize

Connecting Way

USB

Working Mode

Untouched arc striking

Cooling method

With water pump and tank provide circulating water cooling

Z axis travel

0-70mm

The automatic elastic raise

0-5mm

Rail guide

Precision work round

Transmit way

Taiwan imported ball screw

Operation language

Chinese or English

Command

G code, *uoo, *mmg, *plt

Optional power source

America Hypertherm and America Thermadyne

Spare parts

Electrode ,Electricity nozzle and Water jacket

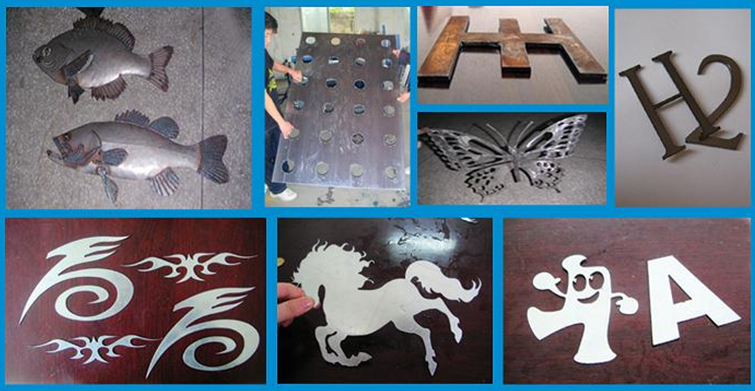

Sampls:
